[DDI-SRG] [CDI] Questions about ControlledVocabularyEntry, PairedControlledVocabularyEntry and Reference

Mon Aug 23 05:50:44 EDT 2021

I would understand ‘identifier’ as identification of an instance of the Activity class but not as reference to another object. This might be confusing.

I think we could live with the full-fledged Reference. The use of this class needs anyway documentation including some examples. The implementers could drop some Reference attributes depending from the use case.

Achim

From: ddi-srg-bounces at icpsr.umich.edu <ddi-srg-bounces at icpsr.umich.edu> On Behalf Of Flavio Rizzolo
Sent: Sonntag, 22. August 2021 10:16
To: A. G. <ilg21 at yahoo.com>; DDI Structural Reform Working Group. <ddi-srg at icpsr.umich.edu>; Hoyle, Larry <larryhoyle at ku.edu>
Subject: Re: [DDI-SRG] [CDI] Questions about ControlledVocabularyEntry, PairedControlledVocabularyEntry and Reference

Ok.

BTW, I think I will just drop the idea of NativeReference as a superclass of Reference, I don't think I can untangle Reference and ControlledVocabularyEntry in any meaningful way, this requires more thinking than the one it can be done before the release.

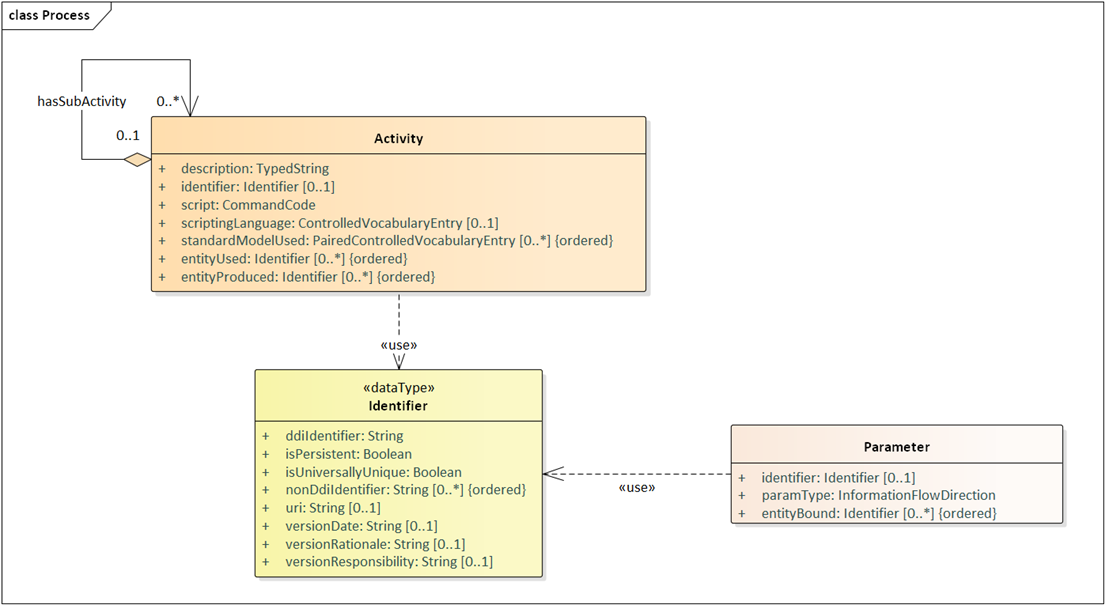

I just want a simple mechanism to reference an object and its type. How about just using Identifier? It doesn't include the type, but it's not necessary in the particular case of the Process model since it can refer to any identifiable object. It will be something like this:

[cid:image001.png at 01D79815.197433E0]

At this point I think it's either this or the full-fledged Reference.

Flavio

On 2021-08-21 9:04 p.m., A. G. wrote:
Flavio:

I agree with Larry on this one - that seems right to me.

Cheers,

Arofan

On Sunday, August 22, 2021, 03:03:04 AM GMT+2, Hoyle, Larry <larryhoyle at ku.edu><mailto:larryhoyle at ku.edu> wrote:

I think you are on the right track with using Reference instead of PairedControlledVocabularyEntry. Reference didn’t exist when Activity was modeled.

standardModelUsed with datatype Reference would have:

vocabulary as a reference to  GSBPM   (https://statswiki.unece.org/display/GSBPM/GSBPM+v5.1)

controlledVocabuaryName as “GSBPM”

entryValue as the name of the sub step “1.1 Identify Needs”

entryReference as a Reference to the sub step (https://statswiki.unece.org/display/GSBPM/1.1+Identify+needs)

From: Flavio Rizzolo <flavio.rizzolo at gmail.com><mailto:flavio.rizzolo at gmail.com>
Sent: Saturday, August 21, 2021 5:46 PM
To: Hoyle, Larry <larryhoyle at ku.edu><mailto:larryhoyle at ku.edu>; DDI Structural Reform Working Group. <ddi-srg at icpsr.umich.edu><mailto:ddi-srg at icpsr.umich.edu>
Subject: Re: [DDI-SRG] [CDI] Questions about ControlledVocabularyEntry, PairedControlledVocabularyEntry and Reference

I saw the definition, it's just that it doesn't seem to align with its use in Activity

[cid:o4ntvo1R5UBMZLiTStDg]

standardModelUsed is defined as

"If a standard process model such as The Generic Statistical Business Process Model (GSBPN), the Generic Longitudinal Business Process Model (GLBPM), Open Archive Information System model (OAIS), etc. has been related to this business process, the model and step or sub-step is noted here using the Paired External Controlled Vocabulary Entry. Enter the name of the model in "term" and the step, sub-step, or specific portion of the model in "extent".

That seems to align better with Reference than with PairedControlledVocabularyEntry, since we need to refer to a schema, e.g. "GSBPM", and then to an element in the schema, e.g. "edit & imputation". I don't see how to map "GSBPM" to term and "edit & imputation" to extent...

Flavio

On 2021-08-21 6:09 p.m., Hoyle, Larry wrote:

term is a ControlledVocabularyEntry

extent is a degree of the term. It has the description:

“Describes the extent to which the parent term applies for the specific case using an external controlled vocabulary. When associated with a role from the CASRAI Contributor Roles Taxonomy an appropriate vocabulary should be specified as either ‘lead’, ‘equal’, or ‘supporting’.”

In the example from the Credit taxonomy one could be credited as being the “lead” conceptualizer, or “equal”, or “supporting”.

http://credit.niso.org/implementing-credit/<https://nam10.safelinks.protection.outlook.com/?url=http%3A%2F%2Fcredit.niso.org%2Fimplementing-credit%2F&data=04%7C01%7Clarryhoyle%40ku.edu%7C2cc65b45ad514c59087e08d964f583da%7C3c176536afe643f5b96636feabbe3c1a%7C0%7C0%7C637651827913948113%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C1000&sdata=wkUlxIC%2Ffj%2FvcztAA3y5U76NBW4LV0C3AfWn6VY271E%3D&reserved=0>

This was done to disambiguate the use of author order in citing contributors. In some disciplines the first author is the lead. In others the head of a larger project might be listed last.

Larry

From: Flavio Rizzolo <flavio.rizzolo at gmail.com><mailto:flavio.rizzolo at gmail.com>
Sent: Saturday, August 21, 2021 4:59 PM
To: Hoyle, Larry <larryhoyle at ku.edu><mailto:larryhoyle at ku.edu>; DDI Structural Reform Working Group. <ddi-srg at icpsr.umich.edu><mailto:ddi-srg at icpsr.umich.edu>
Subject: Re: [DDI-SRG] [CDI] Questions about ControlledVocabularyEntry, PairedControlledVocabularyEntry and Reference

Oh, I see what you mean. I'll fix that.

Ok, so vocabulary is a "Reference", not a "String". I'll fix that too.

Back to my last question: how is the use of "entryReference" and "entryValue" in the example different from "extent" and "term" in PairedControlledVocabulary?

Other questions:

- CatalogDetail:  This structured data type has no definition, no subclasses and no structure. What is it? How can it be used in its current state?

- DataPoint: Why does it have now a catalogDetails attribute? Why DataPoint and not DataSet or other classes in Data Description? The use of CatalogDetails is unclear

On 2021-08-21 5:34 p.m., Hoyle, Larry wrote:

ControlledVocabularyEntry should be able to reference an entry outside of DDI. So that entryReference should be Reference, not Native Reference. It would be better to ditch the inheritance of ControlledVocabularyEntry from NativeControlledVocabularyEntry and just have a separate ControlledVocabularyEntry with all of the properties it has below.

Here is an example.

vocabulary  is a reference to http://credit.niso.org/<https://nam10.safelinks.protection.outlook.com/?url=http%3A%2F%2Fcredit.niso.org%2F&data=04%7C01%7Clarryhoyle%40ku.edu%7C2cc65b45ad514c59087e08d964f583da%7C3c176536afe643f5b96636feabbe3c1a%7C0%7C0%7C637651827913948113%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C1000&sdata=A5gBJdcJR7eESx4%2FokMdXNGAqiWHMvLhRaxHcNz2tcw%3D&reserved=0> the Credit Taxonomy (via the uri of Reference)

controlledVocabularyName is “the Credit Taxonomy”

entryReference is http://credit.niso.org/contributor-roles/conceptualization/<https://nam10.safelinks.protection.outlook.com/?url=http%3A%2F%2Fcredit.niso.org%2Fcontributor-roles%2Fconceptualization%2F&data=04%7C01%7Clarryhoyle%40ku.edu%7C2cc65b45ad514c59087e08d964f583da%7C3c176536afe643f5b96636feabbe3c1a%7C0%7C0%7C637651827913958099%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C1000&sdata=bbH%2Ffn7svFcrSJCnT3XkMQCSNScIp0hn5azxc8Q6gIM%3D&reserved=0>

entryValue is “Conceptualization”

From: ddi-srg-bounces at icpsr.umich.edu<mailto:ddi-srg-bounces at icpsr.umich.edu> <ddi-srg-bounces at icpsr.umich.edu><mailto:ddi-srg-bounces at icpsr.umich.edu> On Behalf Of Flavio Rizzolo
Sent: Saturday, August 21, 2021 4:15 PM
To: DDI Structural Reform Working Group. <ddi-srg at icpsr.umich.edu><mailto:ddi-srg at icpsr.umich.edu>
Subject: [DDI-SRG] [CDI] Questions about ControlledVocabularyEntry, PairedControlledVocabularyEntry and Reference

Hi,

These are the new Native classes, with the old classes as extensions:

[cid:QQ8fjXDNjod1aLaXUUp1]

We can always define attributes of type NativeControlledVocabularyEntry and NativeReference, which will allow us to use the full-fledged list of attributes from the sub-classes if necessary.

With that in mind:

1) shouldn't we then change the type of the attributes in PairedControlledVocabulary to NativeControlledVocabularyEntry?

[cid:TrzQ0zxfh0uzWGWCnox9]

2) What's exactly "vocabulary" in ControlledVocabularyEntry? How is it used?

3) Actually, how do we really use these things? I understand how the Native classes work, but now it seems Reference might be used to reference a term and an extent, like PairedControlledVocabularyEntry, but in a different way. I think there was an example somewhere that help people made sense of all this, but I can't find it, and I fear we are making a mistake somewhere... So many cross references between classes are making me dizzy...

Thanks,

Flavio
